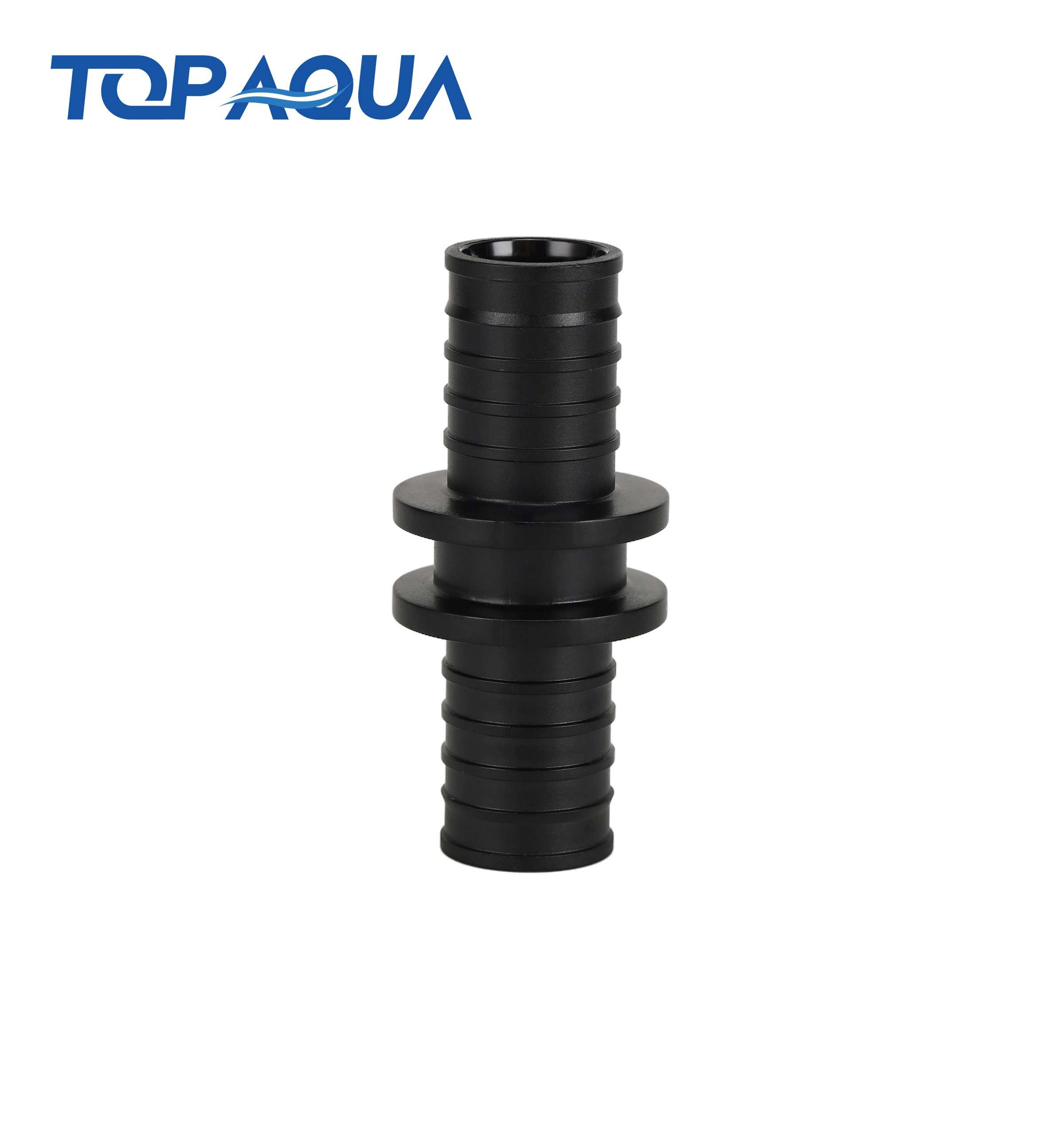

PPSU Pull-On fittings equal union

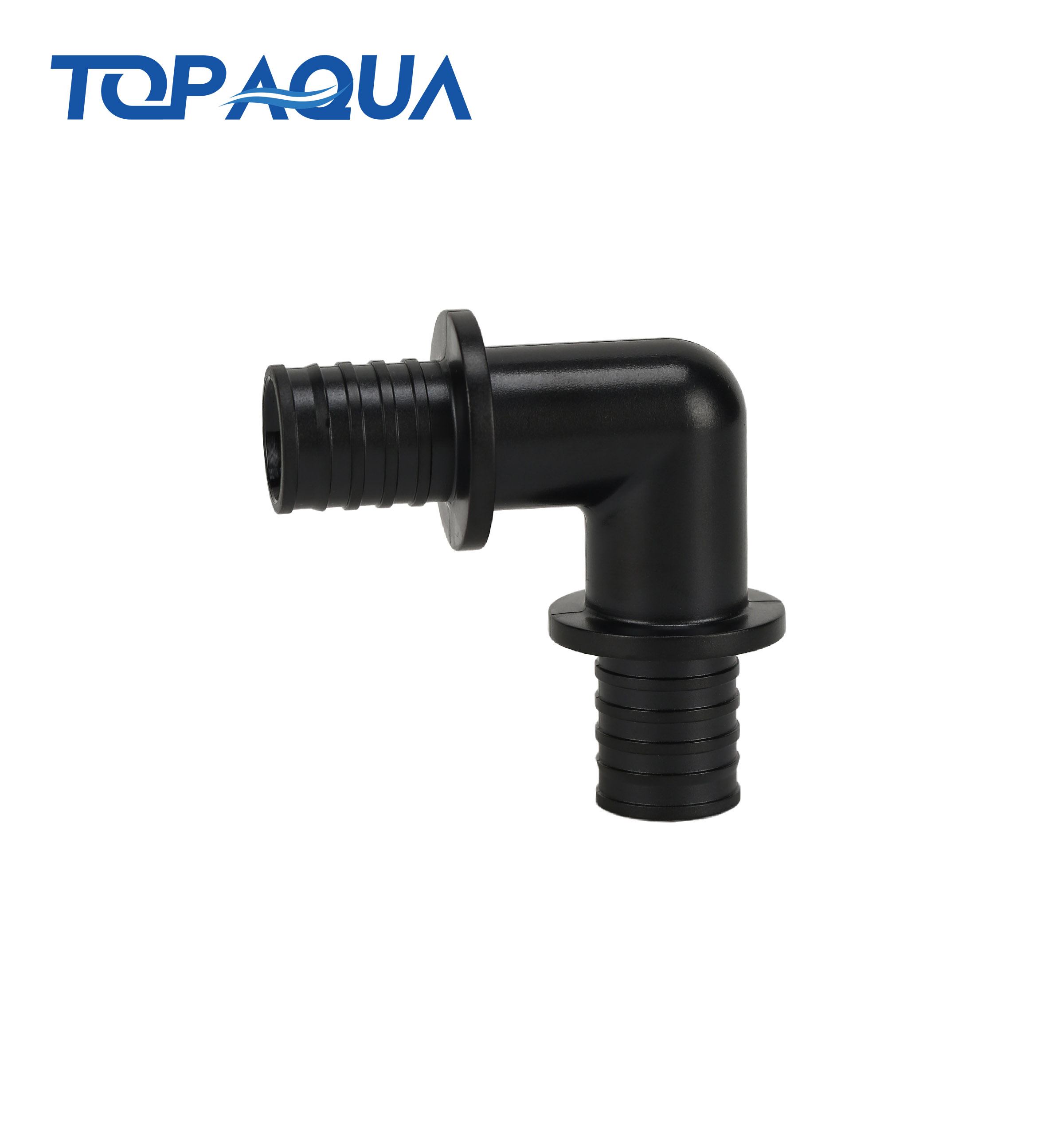

PPSU Pull-On fittings equal elbow
Product Introduction
TOP AQUA PPSU Pull-On fittings serve as a high-quality alternative to traditional brass Pull-On fittings. They not only achieve an excellent balance between lightweight design and structural strength but also offer greater cost-effectiveness, effectively reducing overall construction and material costs.
In terms of core component design, the Pull-On sleeve of these fittings is made from high-quality polyvinylidene fluoride (PVDF) plastic. Its outstanding resilience ensures a tighter and more stable locking effect with the pipe after installation. Compared with traditional brass Pull-On sleeves, it boasts superior sealing performance and anti-loosening capability, and can withstand pressure fluctuations in the piping system for a long time.
Most notably, the PPSU material itself complies with hygiene standards for drinking water contact. It fundamentally eliminates the safety hazard of harmful substances potentially leaching from traditional metal fittings due to corrosion and aging, providing long-term and reliable hygiene protection for drinking water systems. Thus, it is an ideal solution for the upgrade of next-generation piping systems.
Product Parameters
| PRODUCT | SPECIFICATION | ||
| PPSU Pull-On fittings unequal tee | PPSU-PF2-T16(2.2)*20(2.8)*16(2.2) | PPSU-PF2-T20(2.8)*16(2.2)*16(2.2) | PPSU-PF2-T20(2.8)*16(2.2)*20(2.8) |
| PPSU-PF2-T20(2.8)*20(2.8)*16(2.2) | PPSU-PF2-T20(2.8)*25(3.5)*20(2.8) | PPSU-PF2-T25(3.5)*16(2.2)*20(2.8) | |
| PPSU-PF2-T25(3.5)*20(2.8)*20(2.8) | PPSU-PF2-T25(3.5)*20(2.8)*25(3.5) | PPSU-PF2-T25(3.5)*25(3.5)*20(2.8) | |
| PPSU Pull-On fittings fittings unequal union | PPSU-PF2-S20(2.8)*16(2.2) | PPSU-PF2-S25(3.5)*16(2.2) | PPSU-PF2-S25(3.5)*20(2.8) |
| PPSU Pull-On fittings fittings equal tee | PPSU-PF2-T16(2.2)*16(2.2)*16(2.2) | PPSU-PF2-T20(2.8)*20(2.8)*20(2.8) | PPSU-PF2-T25(3.5)*25(3.5)*25(3.5) |
| PPSU Pull-On fittings fittings equal union | PPSU-PF2-S16(2.2)*16(2.2) | PPSU-PF2-S20(2.8)*20(2.8) | PPSU-PF2-S25(3.5)*25(3.5) |
| PPSU Pull-On fittings fittings equal elbow | PPSU-PF2-L16(2.2)*16(2.2) | PPSU-PF2-L20(2.8)*20(2.8) | PPSU-PF2-L25(3.5)*25(3.5) |
Product Advantages
TOP AQUA PPSU PULL-ON FITTINGS
After 3 years of research and development, TOP AQUA officially launches its PPSU Pull-On fittings. With their exceptional cost-effectiveness and hygienic performance, they stand as the unparalleled choice in the market to replace traditional brass fittings.
PPSU material offers numerous advantages. First, it has excellent high-temperature resistance, enabling stable use in high-temperature hot water systems with long-term heat resistance up to 180°C; Second, it exhibits outstanding hydrolysis resistance in high-temperature, high-pressure water environments, remaining resistant to aging and brittleness even with prolonged use, with a lifespan exceeding 50 years, significantly reducing maintenance costs for piping systems; Most importantly, PPSU material has obtained global drinking water safety certifications such as NSF/ANSI 61, KTW, and WRAS, ensuring no phthalate leaching and no bacterial growth, fully meeting the standards for direct drinking water conveyance.
