Brass PF2 PF3 Pull-on fittings

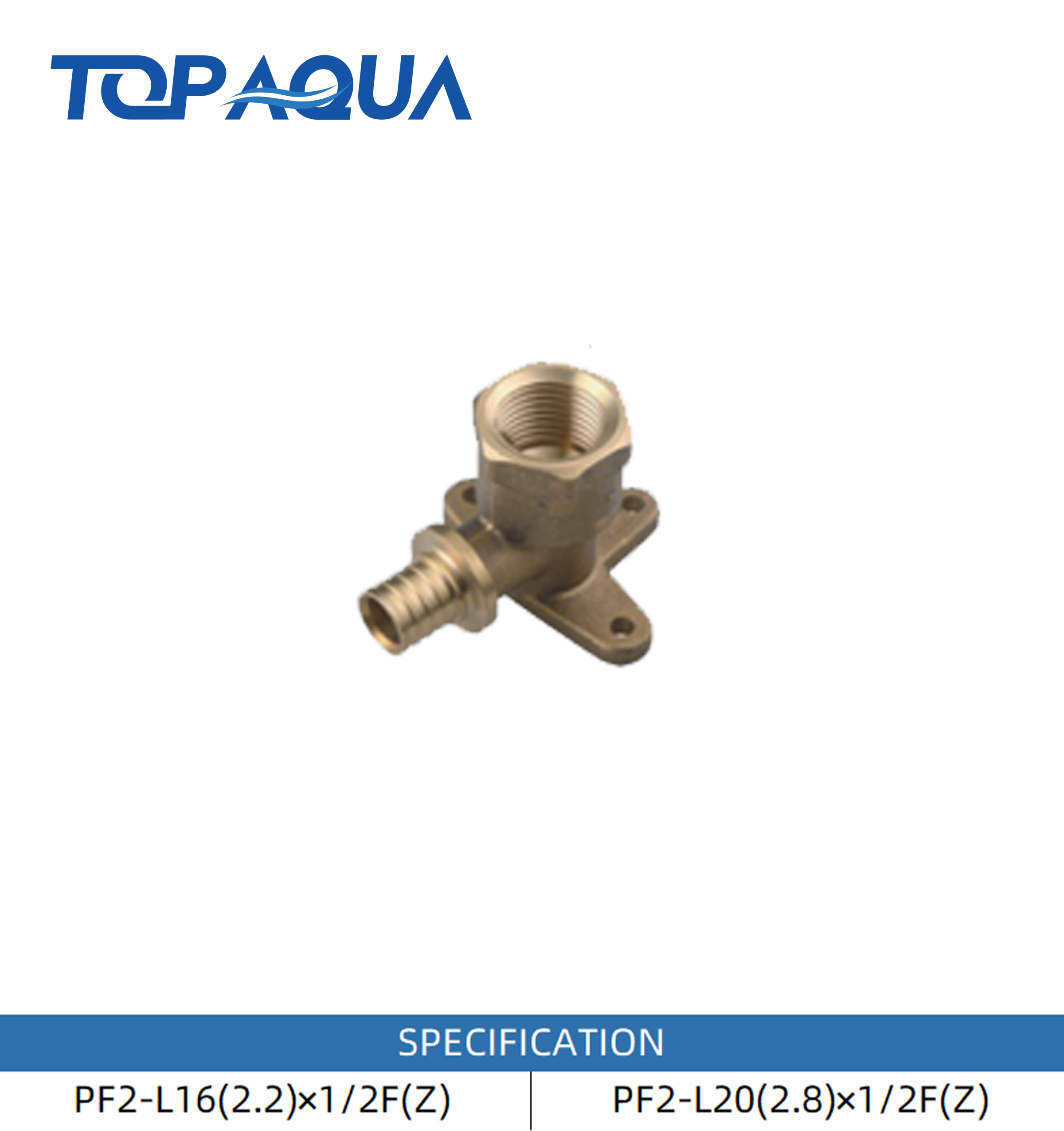

PF2 pull-on fittings wall-plated female elbow
PF2 pull-on fittings equal tee
PF2 pull-on fittings equal straight union
PF2 pull-on fittings end cap
PF2 pull-on fittings female straight union
PF2 pull-on fittings female elbow
PF2 pull-on fittings male elbow
PF2 pull-on fittings male straight union
PF2 pull-on fittings unequal tee
PF2 pull-on fittings unequal union

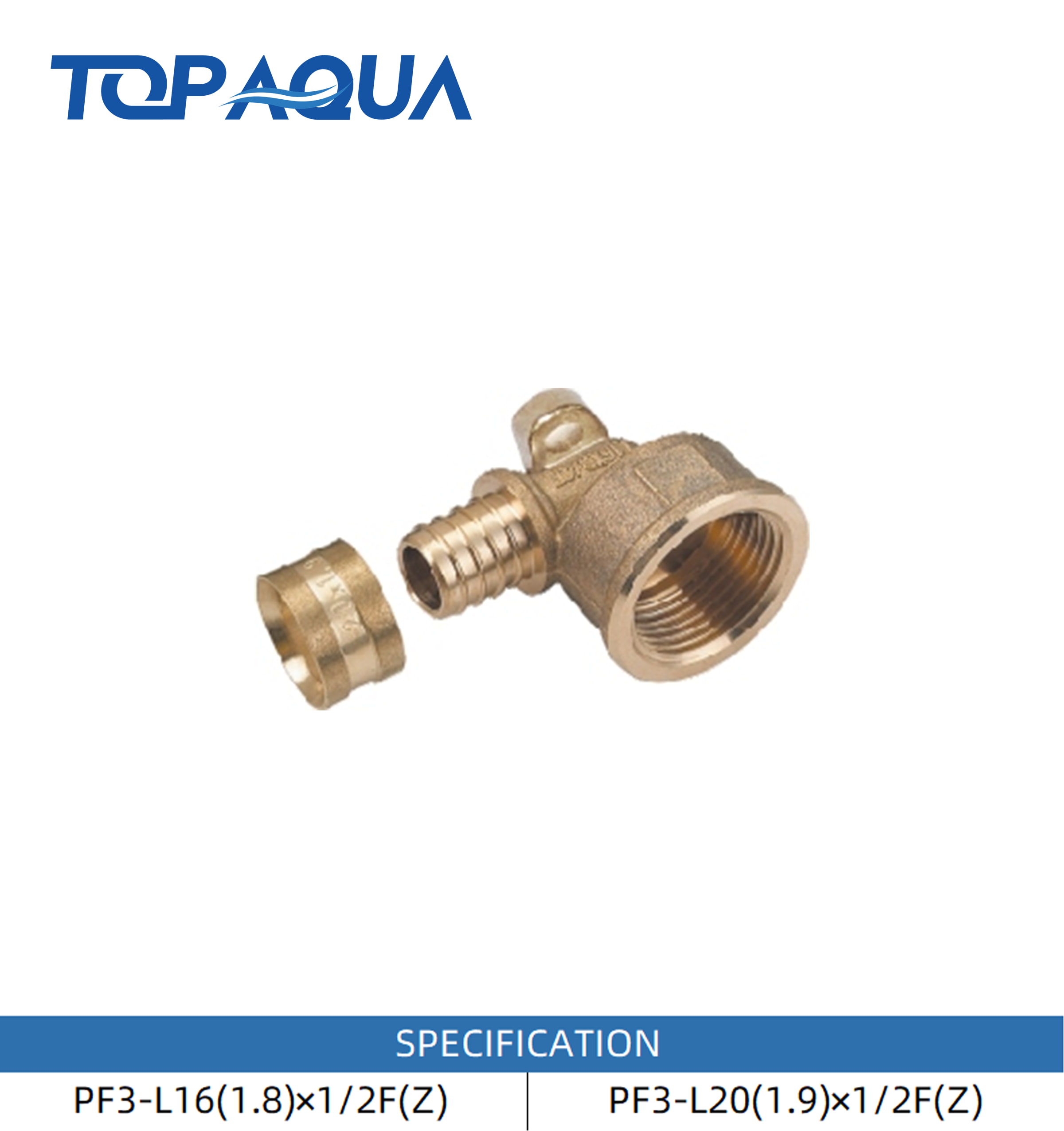

PF3 pull-on fittings wall-plated female elbow
PF3 pull-on fittings equal tee
PF3 pull-on fittings equal elbow
PF3 pull-on fittings equal straight union

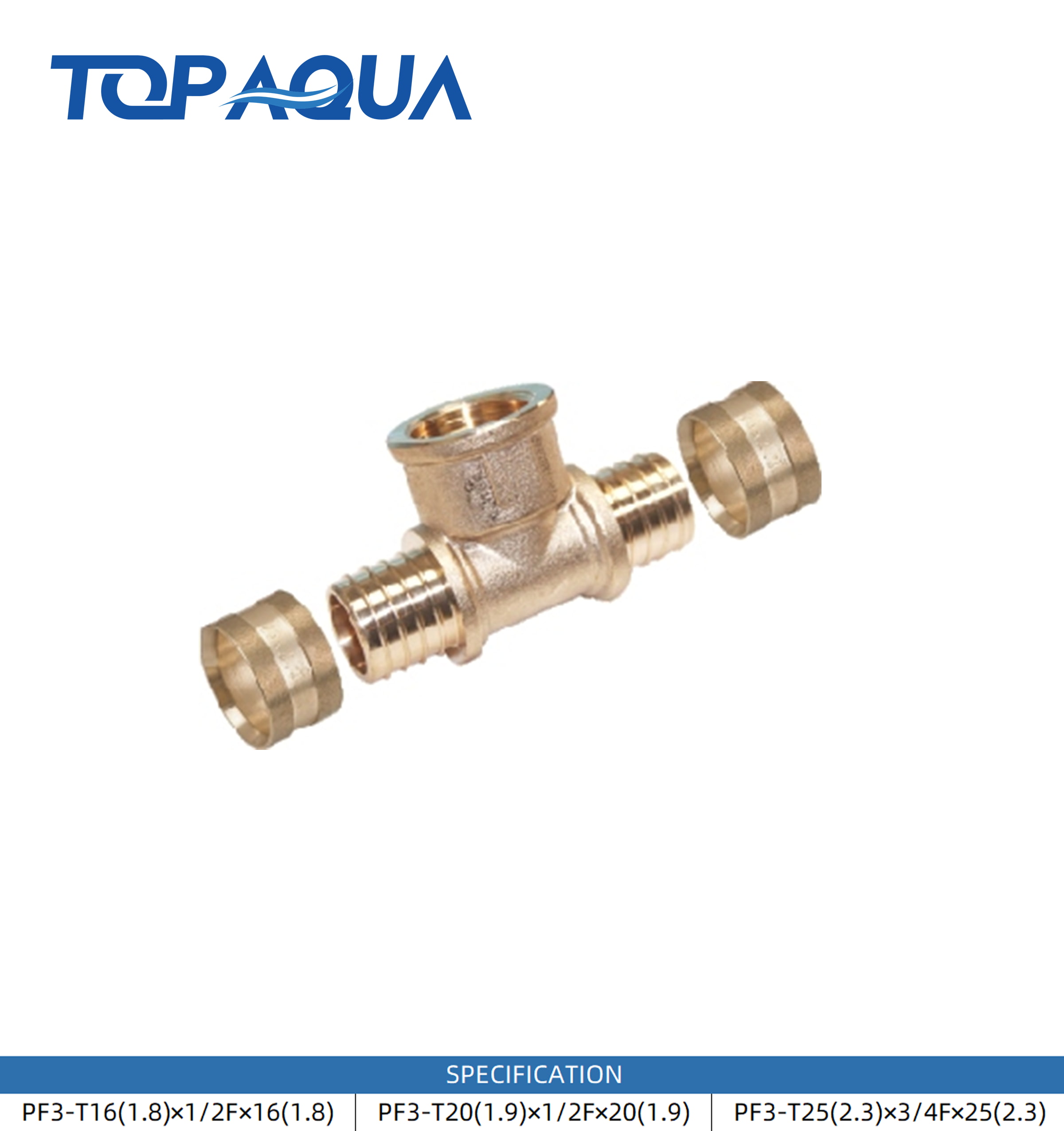

PF3 pull-on fittings female tee
PF3 pull-on fittings female elbow

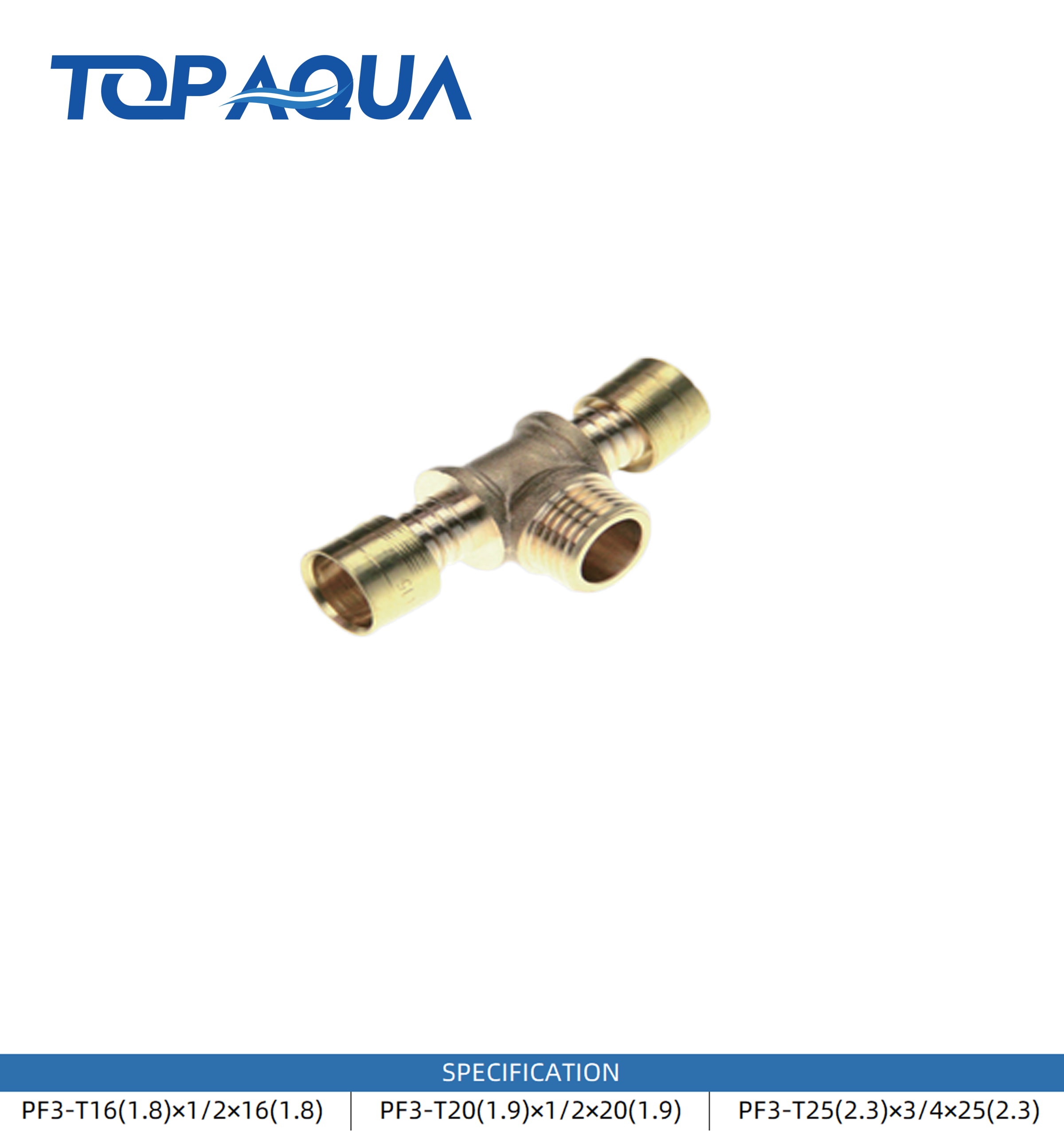

PF3 pull-on fittings male tee
PF3 pull-on fittings male elbow
PF3 pull-on fittings male straight union
PF3 pull-on fittings unequal straight union

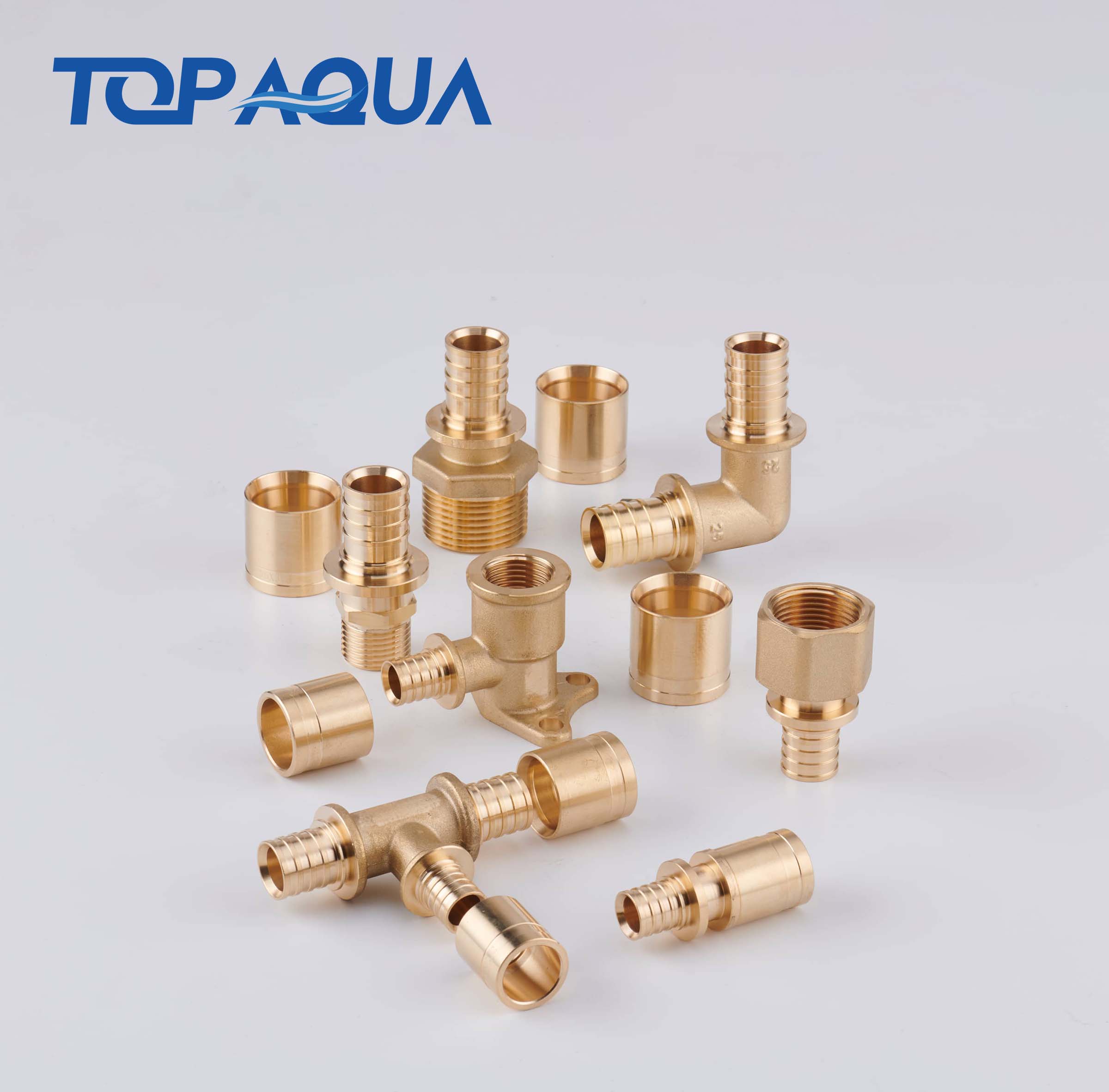

Product Introduction

Pull-on

Fittings

TOP AQUA Pull-on fittings comply with Watermark certification standards, meet AS2537.2 standard requirements, and have over ten years of reliable field service experience. Our connection system utilizes the natural elasticity of pipes to form joints that exceed the strength of the pipe material itself. These permanent brass sleeve joints form pressure seals instantly, ensuring a secure, leak-proof connection without the use of flames, solvents, solder, or flux.

TOP AQUA has two types of Pull-on fittings, one is PF2 which is mainly for the Ukrainian and Australian markets, connecting with pipe SDR3.2; and the other is PF3 which is mainly for the Latin American market, connecting with pipe SDR5.

Product Parameters

PRODUCT	SPECIFICATION

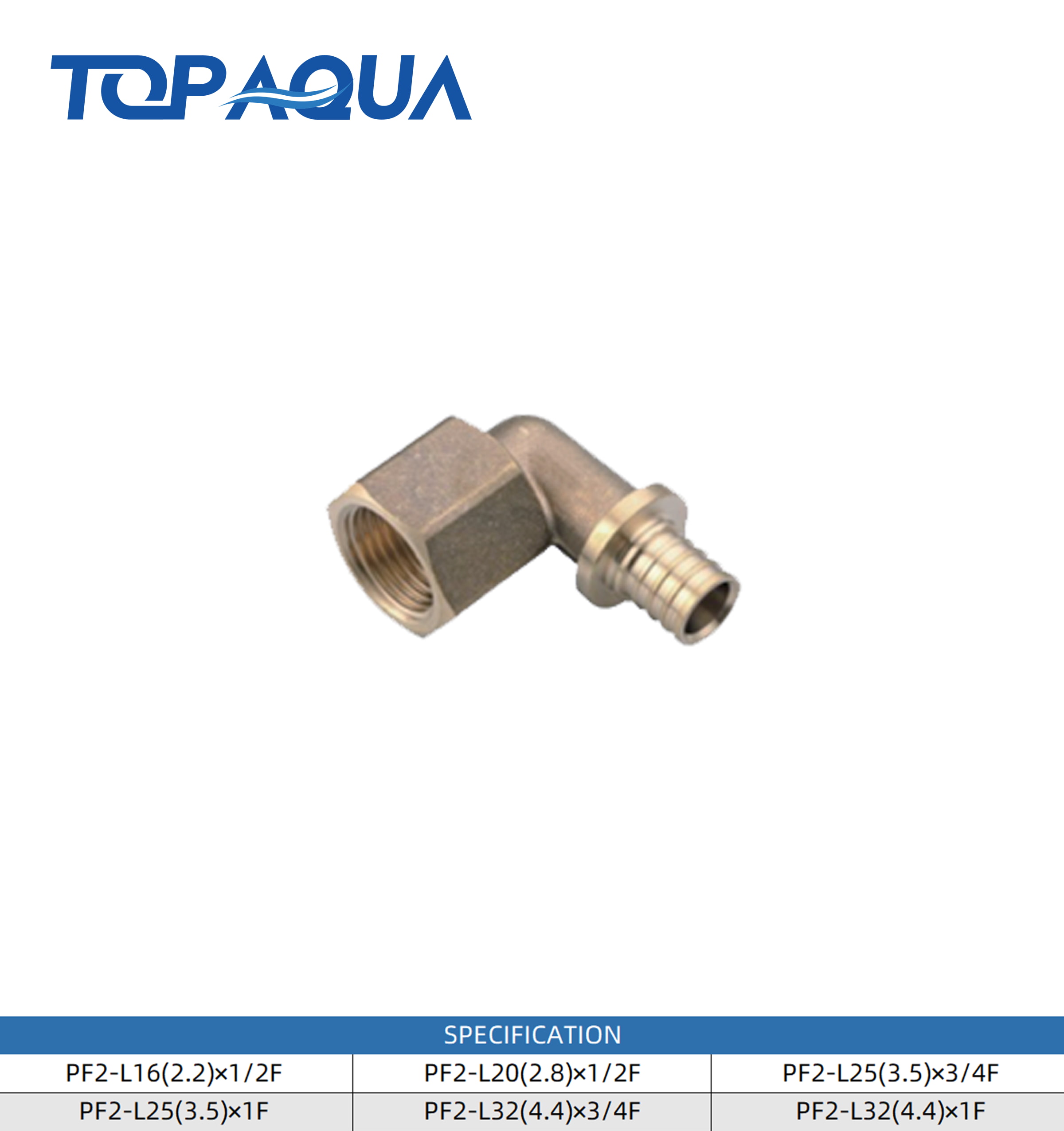

PF2 pull-on fittings female elbow
	PF2-L16(2.2)×1/2F	PF2-L20(2.8)×1/2F	PF2-L25(3.5)×1/2F
	PF2-L25(3.5)×1F	PF2-L32(4.4)×3/4F	PF2-L32(4.4)×1F

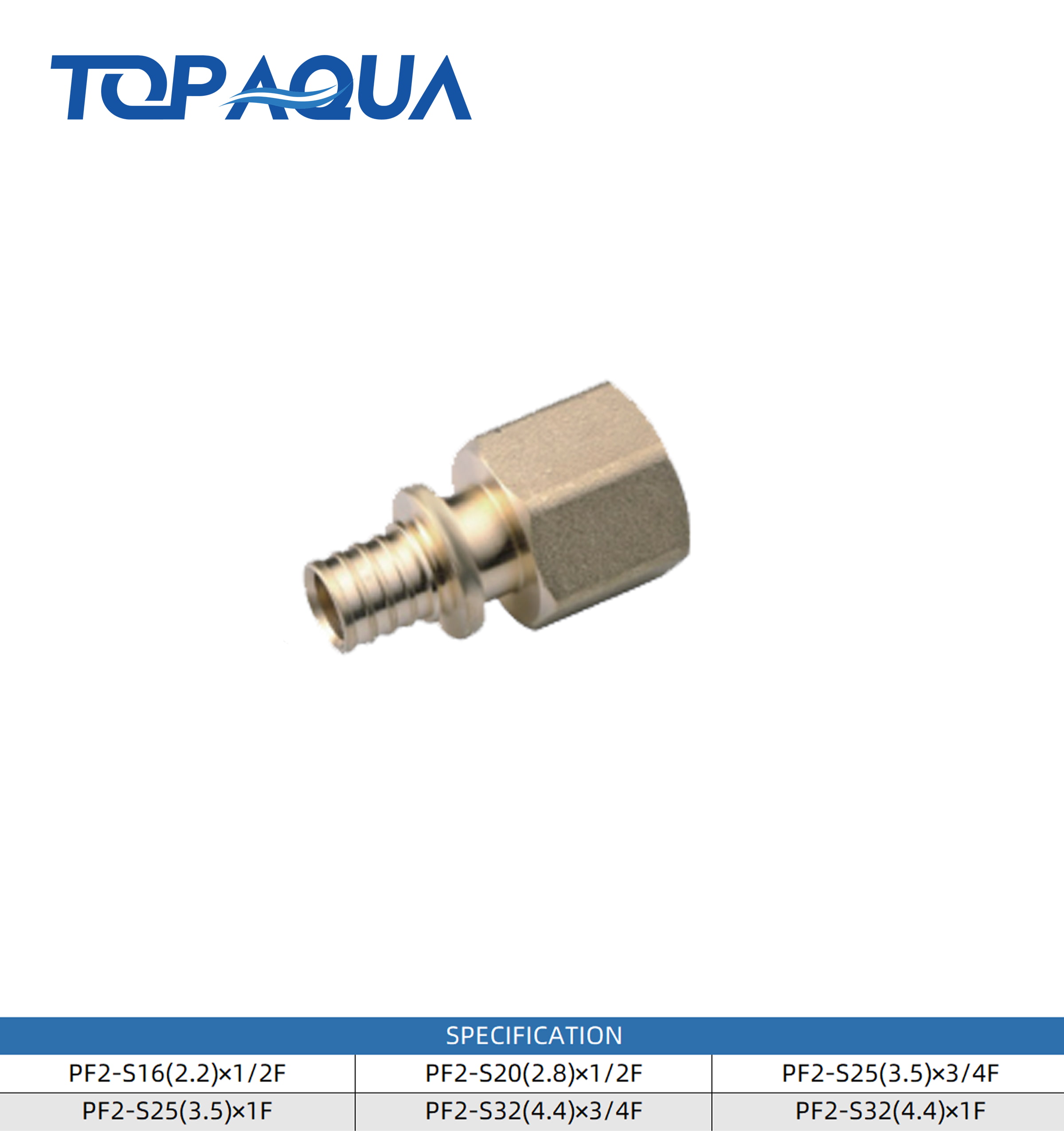

PF2 pull-on fittings female union
	PF2-S16(2.2)×1/2F	PF2-S20(2.8)×1/2F	PF2-S25(3.5)×1/2F
	PF2-S25(3.5)×1F	PF2-S32(4.4)×3/4F	PF2-S32(4.4)×1F

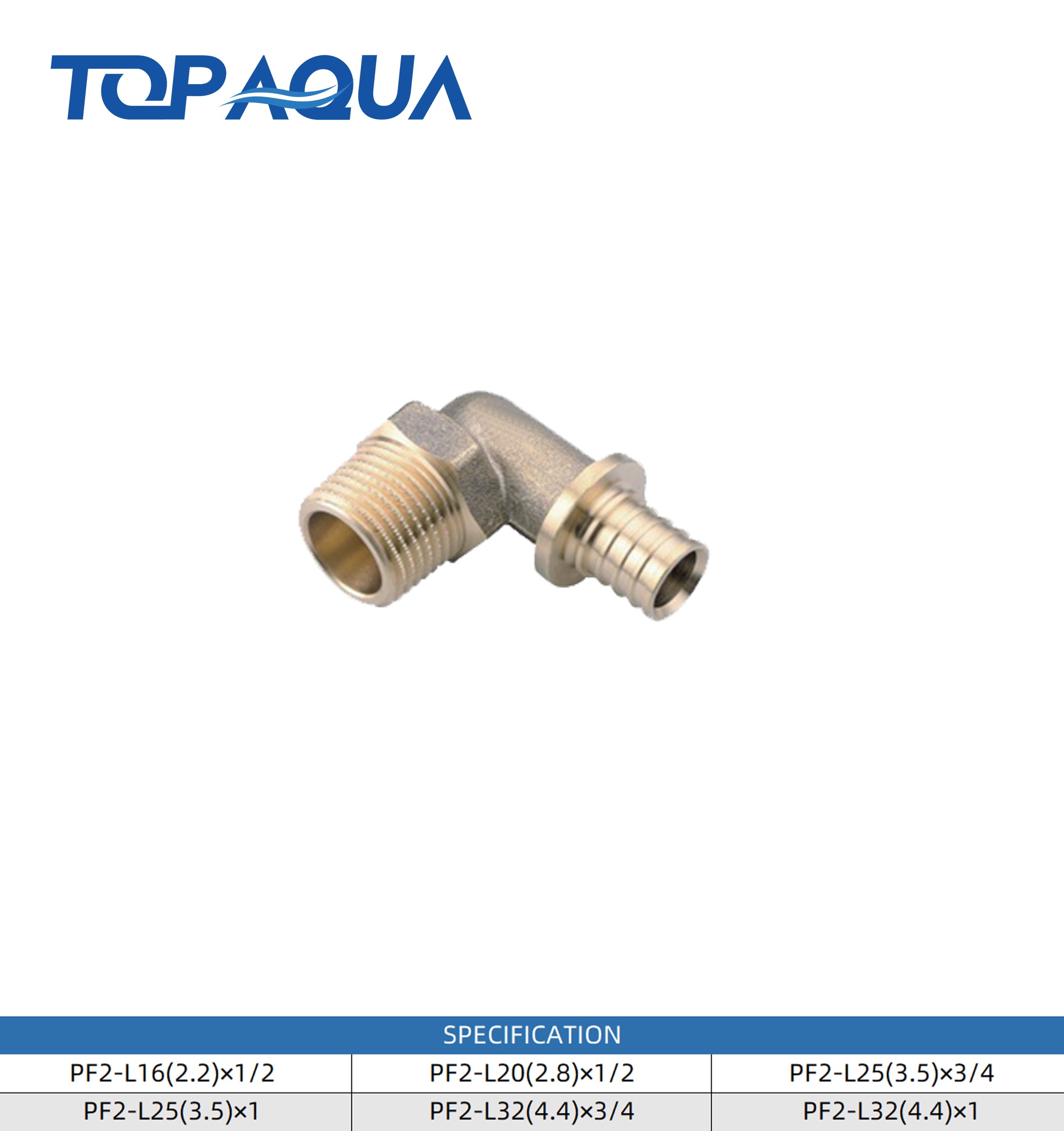

PF2 pull-on fittings male elbow
	PF2-L16(2.2)×1/2	PF2-L20(2.8)×1/2	PF2-L25(3.5)×1/2
	PF2-L25(3.5)×1	PF2-L32(4.4)×3/4	PF2-L32(4.4)×1

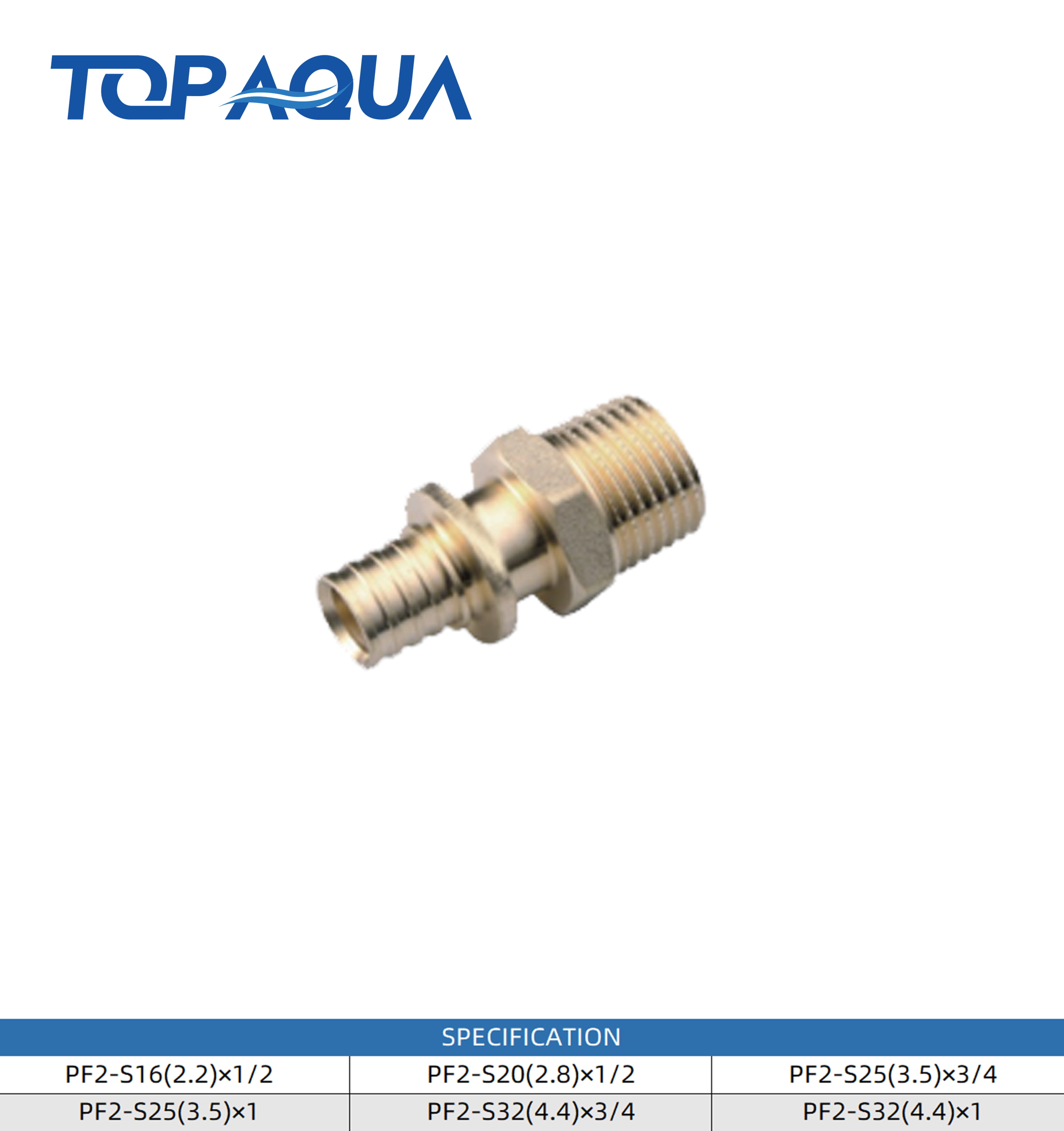

PF2 pull-on fittings male union
	PF2-S16(2.2)×1/2	PF2-S20(2.8)×1/2	PF2-S25(3.5)×1/2
	PF2-S25(3.5)×1	PF2-S32(4.4)×3/4	PF2-S32(4.4)×1

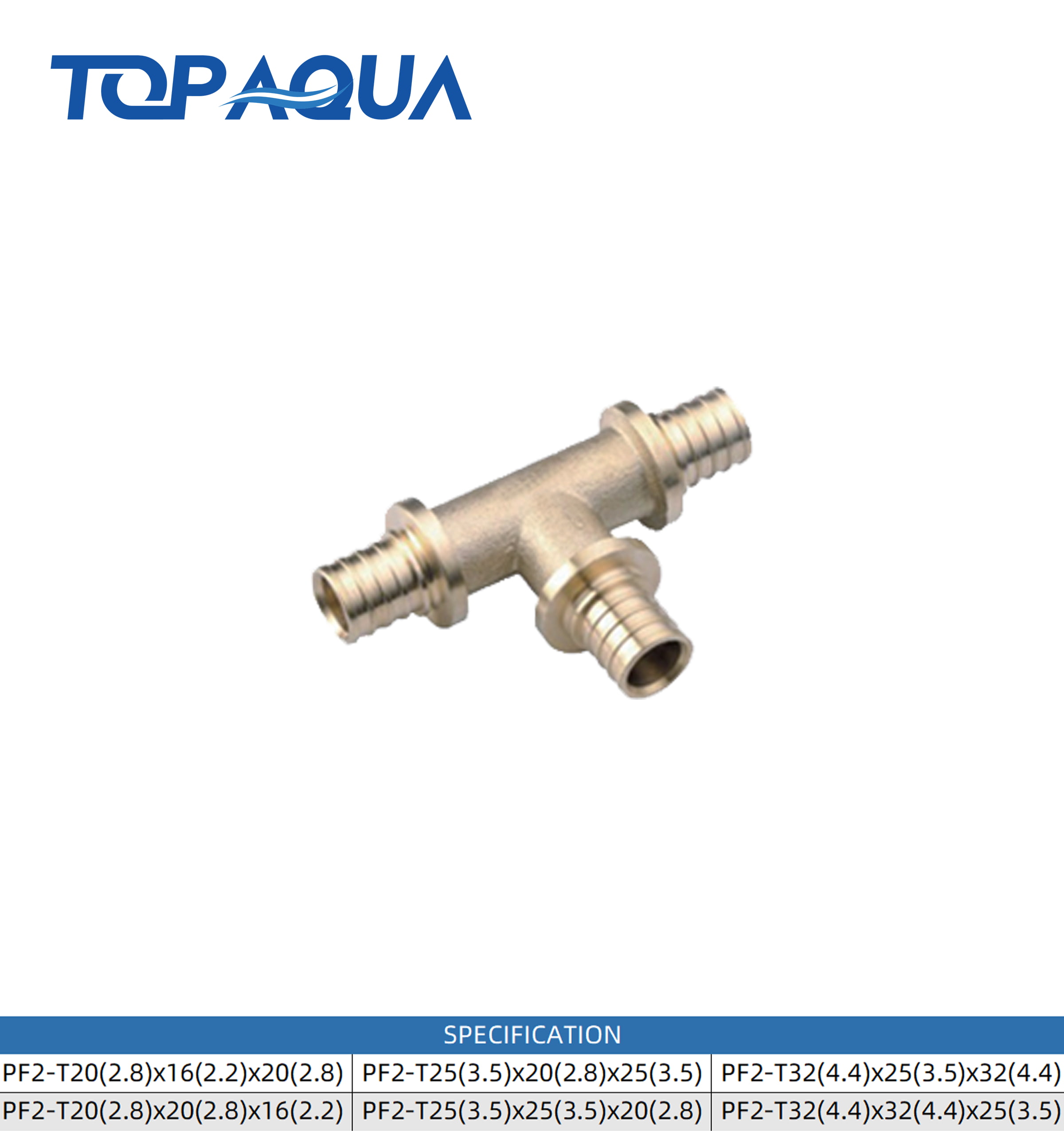

PF2 pull-on fittings unequal tee
	PF2-T16(2.2)×20(2.8)×16(2.2)	PF2-T20(2.8)×16(2.2)×20(2.8)	PF2-T25(3.5)×20(2.8)×25(3.5)
	PF2-T25(3.5)×16(2.2)×25(3.5)	PF2-T32(4.4)×20(2.8)×32(4.4)	PF2-T32(4.4)×25(3.5)×32(4.4)
PF2 pull-on fittings unequal elbow
	PF2-L20(2.8)×16(2.2)	PF2-L25(3.5)×20(2.2)	PF2-L32(4.4)×25(3.5)

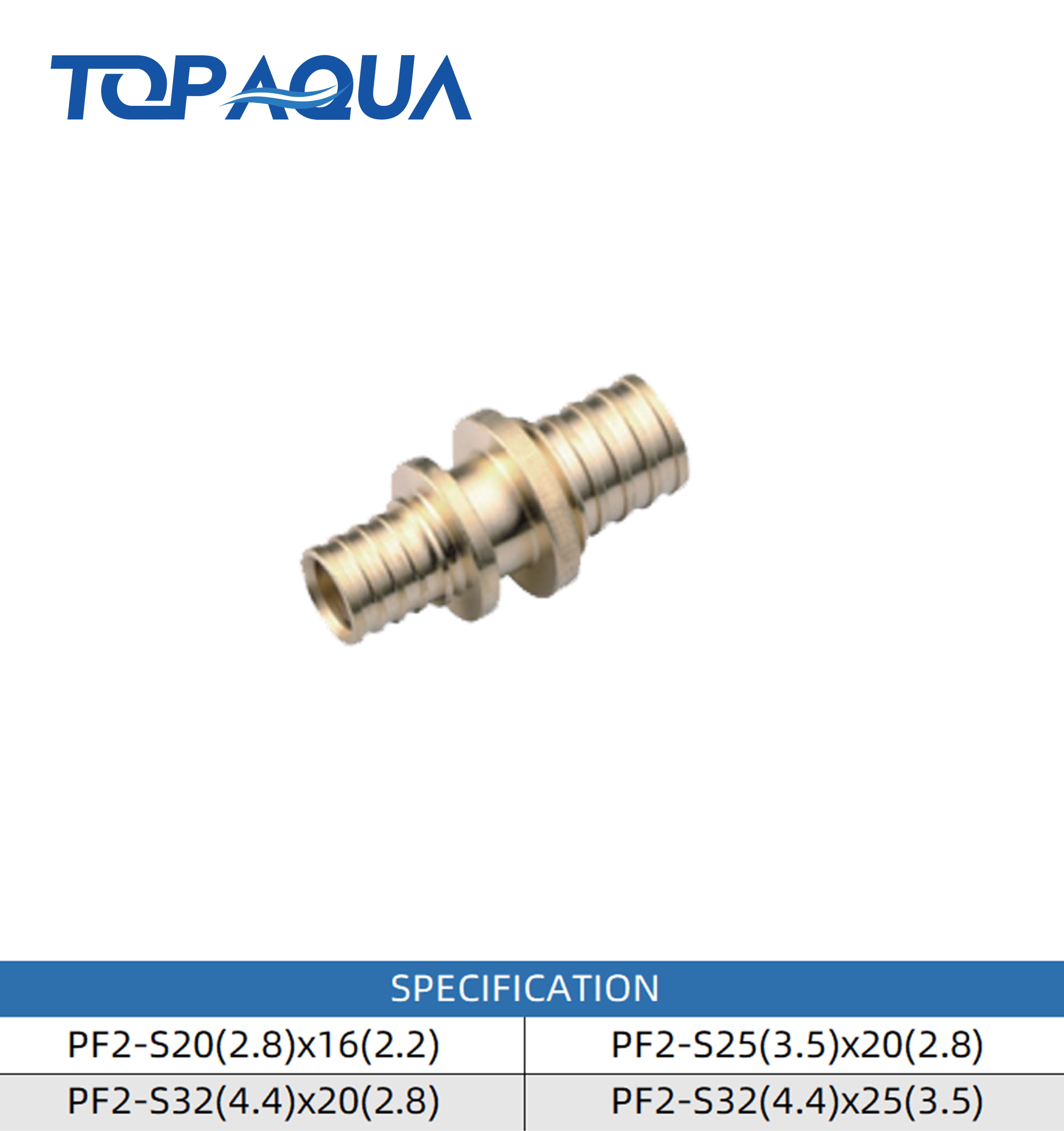

PF2 pull-on fittings unequal union
	PF2-S20(2.8)×16(2.2)	PF2-S25(3.5)×16(2.2)	PF2-S32(4.4)×16(2.2)
	PF2-S25(3.5)×20(2.8)	PF2-S32(4.4)×20(2.8)	PF2-S32(4.4)×25(3.5)

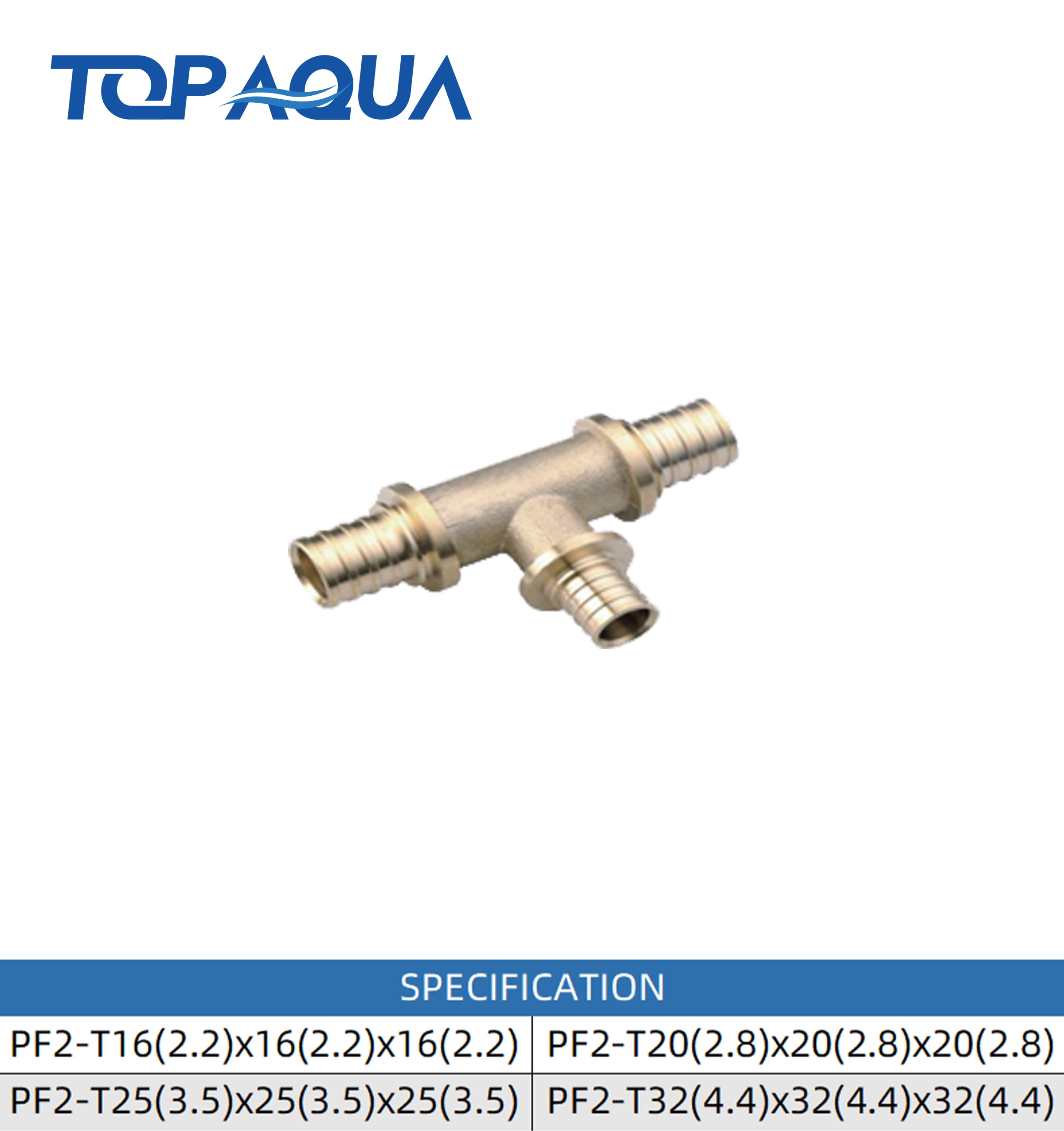

PF2 pull-on fittings equal tee
	PF2-T16(2.2)×16(2.2)×16(2.2)	PF2-T20(2.8)×20(2.8)×20(2.8)	PF2-T25(3.5)×25(3.5)×25(3.5)
	PF2-T32(4.4)×32(4.4)×32(4.4)

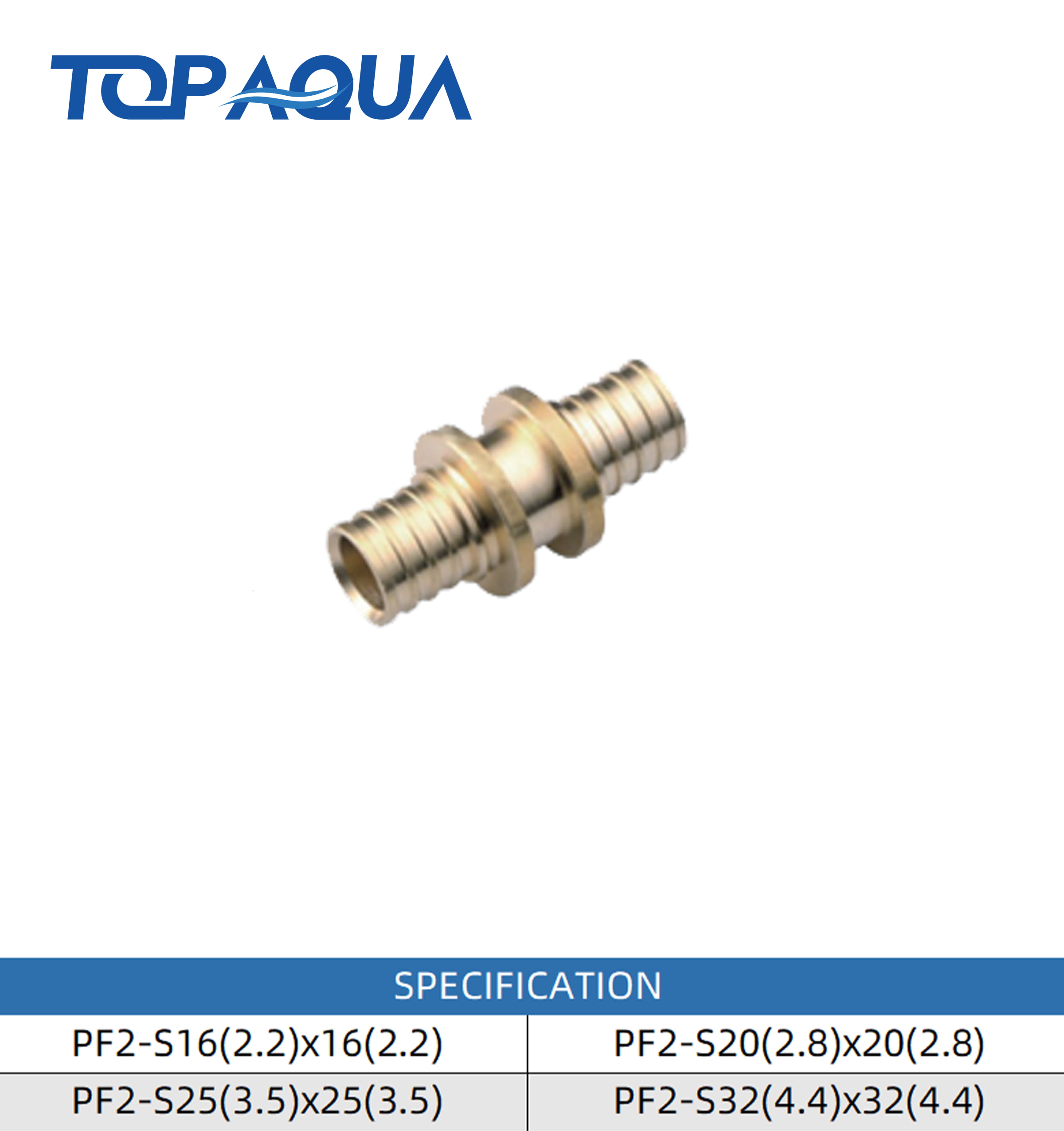

PF2 pull-on fittings unequal union
	PF2-S16(2.2)×16(2.2)	PF2-S20(2.8)×20(2.8)	PF2-S25(3.5)×25(3.5)
	PF2-S32(4.4)×32(4.4)
PF2 pull-on fittings equal elbow
	PF2-L16(2.2)×16(2.2)	PF2-L20(2.8)×20(2.8)	PF2-L25(3.5)×25(3.5)
	PF2-L32(4.4)×32(4.4)

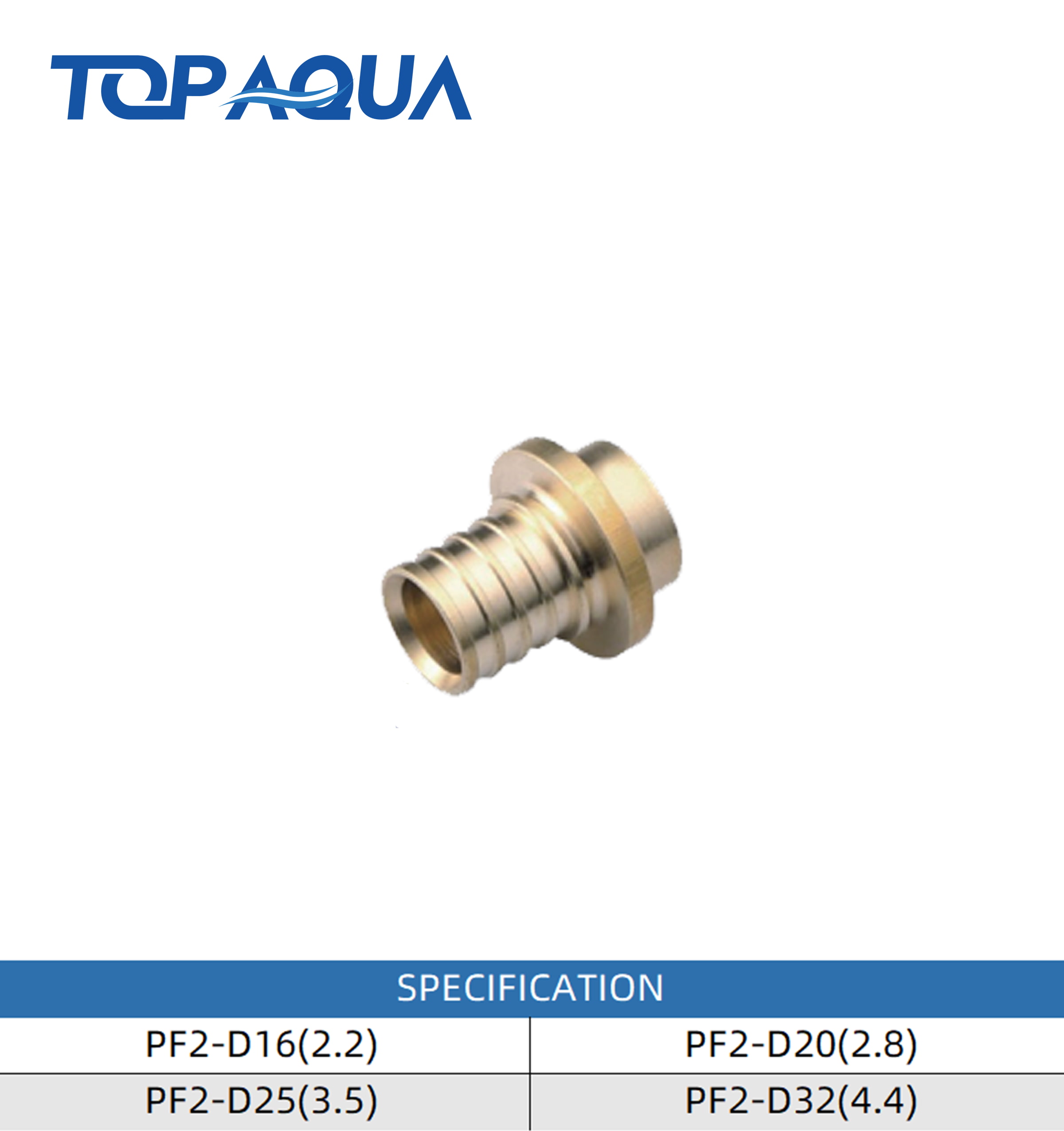

PF2 pull-on fittings end cap
	PF2-D16(2.2)	PF2-D20(2.8)	PF2-D25(3.5)

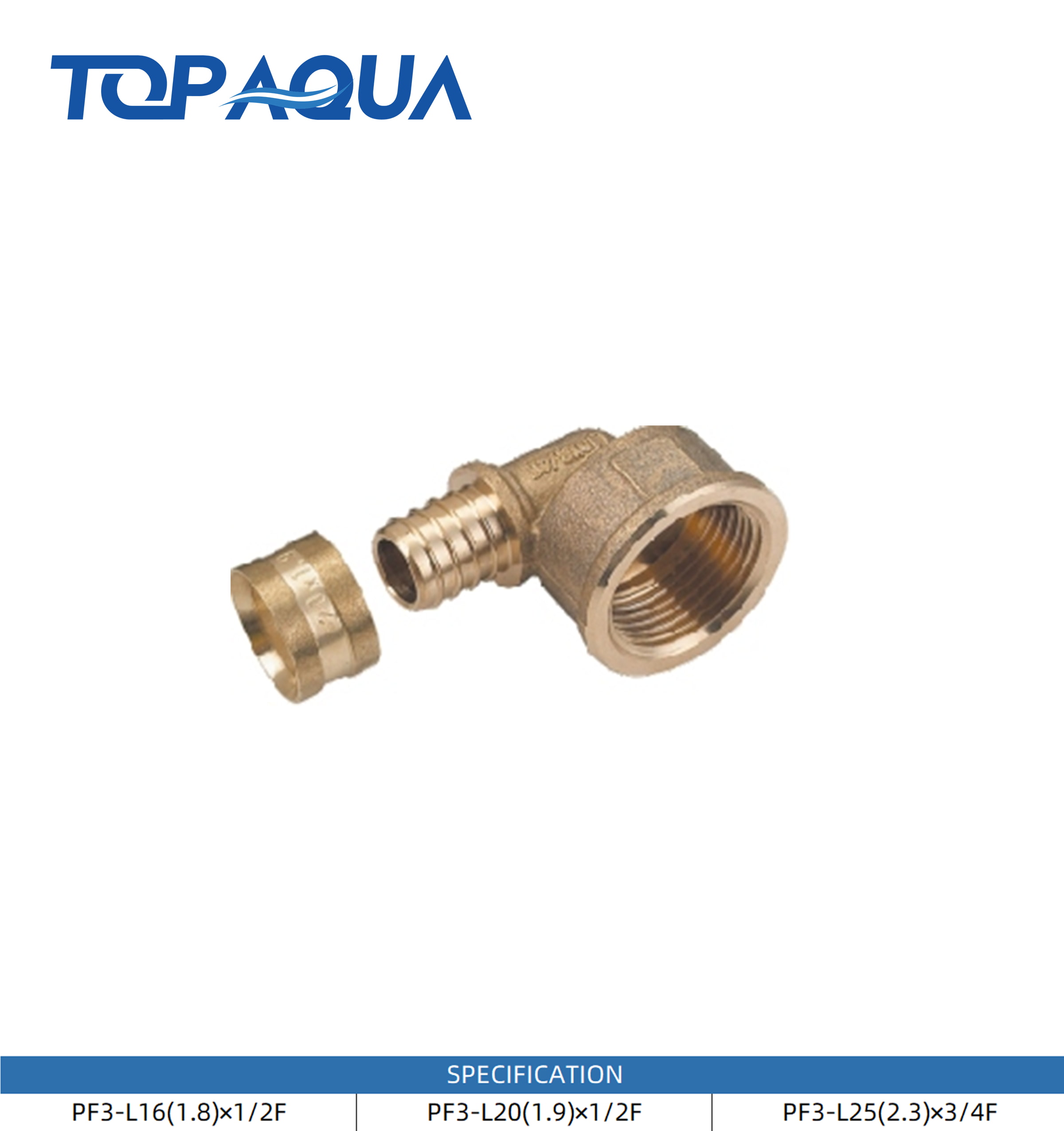

PF3 pull-on fittings female elbow
	PF3-L16(1.8)×1/2F	PF3-L20(1.9)×1/2F	PF3-L25(2.3)×3/4F
PF3 pull-on fittings female union
	PF3-S16(1.8)×1/2F	PF3-S20(1.9)×1/2F	PF3-S25(2.3)×3/4F

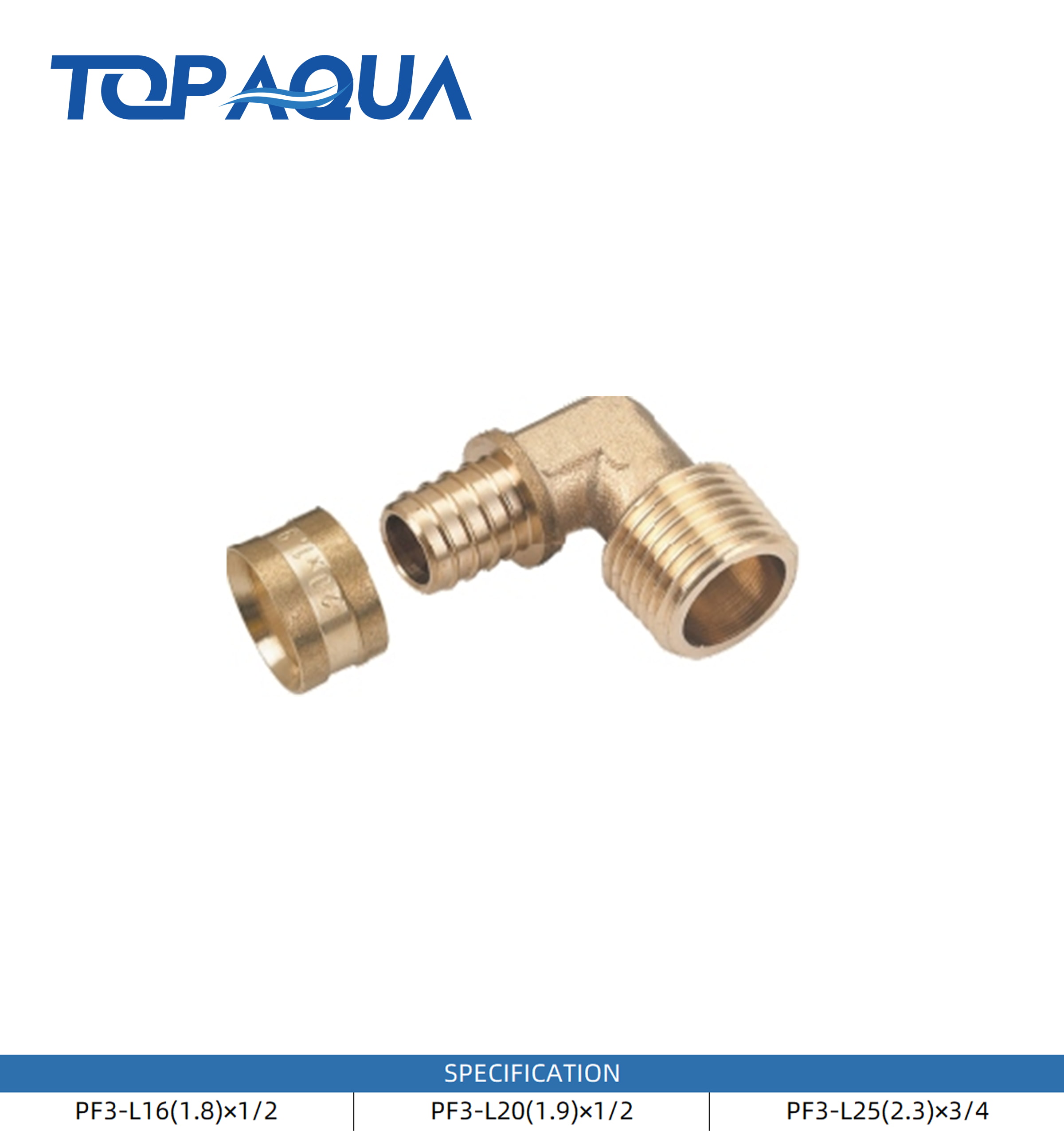

PF3 pull-on fittings male elbow
	PF3-L16(1.8)×1/2	PF3-L20(1.9)×1/2	PF3-L25(2.3)×3/4

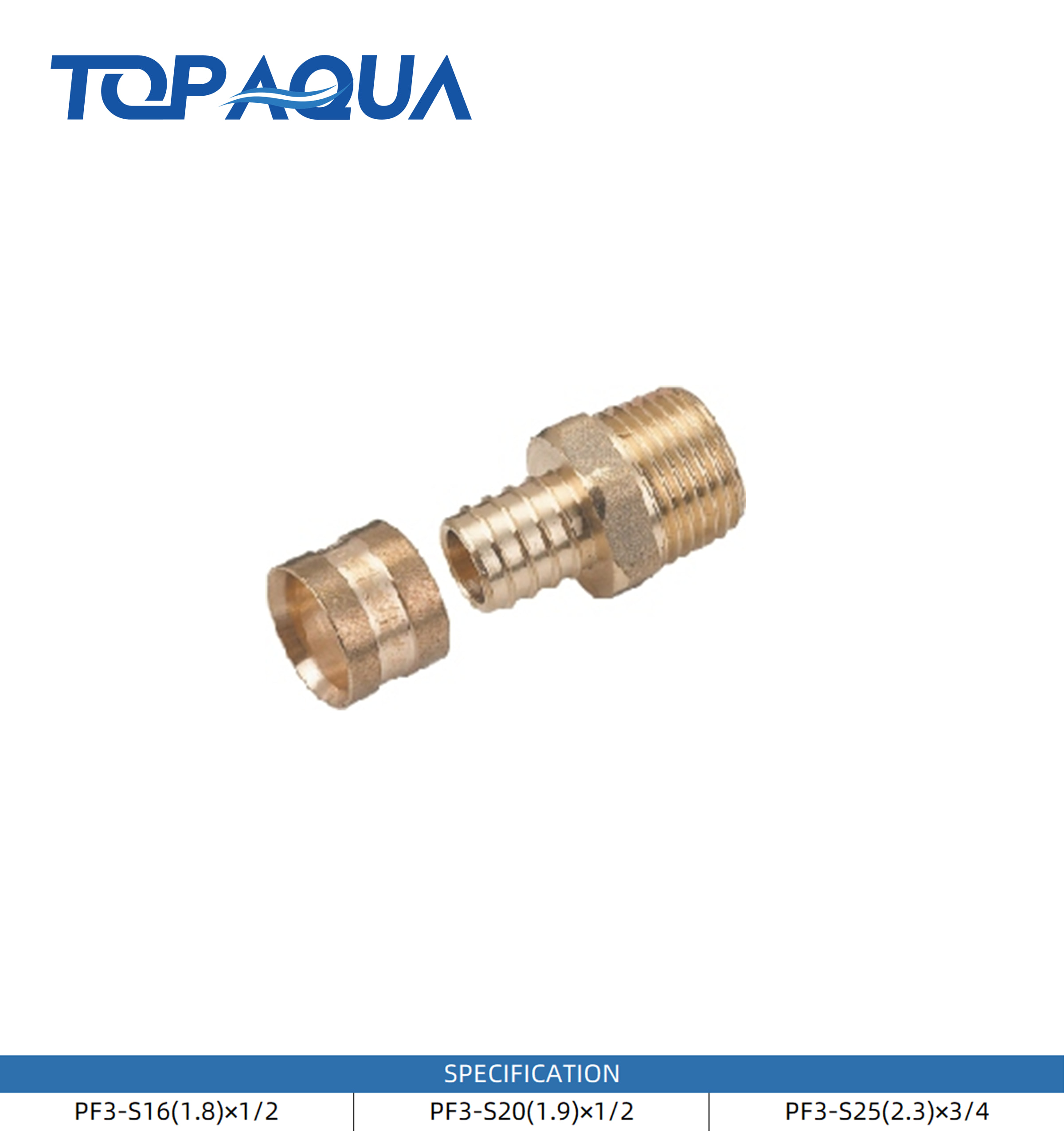

PF3 pull-on fittings male union
	PF3-S16(1.8)×1/2	PF3-S20(1.9)×1/2	PF3-S25(2.3)×3/4
PF3 pull-on fittings unequal tee
	PF3-T16(1.8)×20(1.9)×16(1.8)	PF3-T20(1.9)×16(1.8)×20(1.9)	PF3-T25(2.3)×20(1.9)×25(2.3)

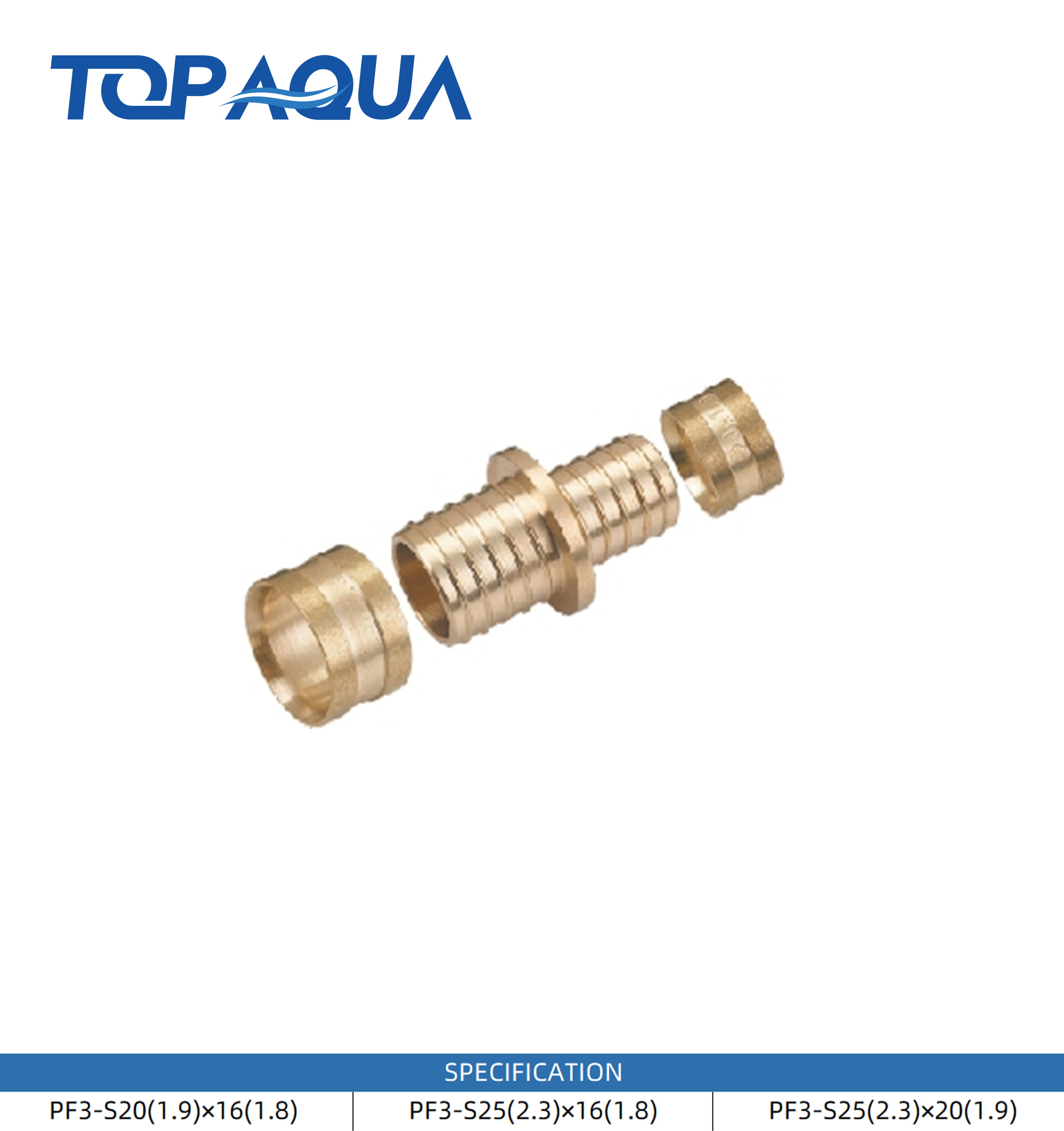

PF3 pull-on fittings unequal union
	PF3-S20(1.9)×16(1.8)	PF3-S25(2.3)×16(1.8)	PF3-S25(2.3)×20(1.9)

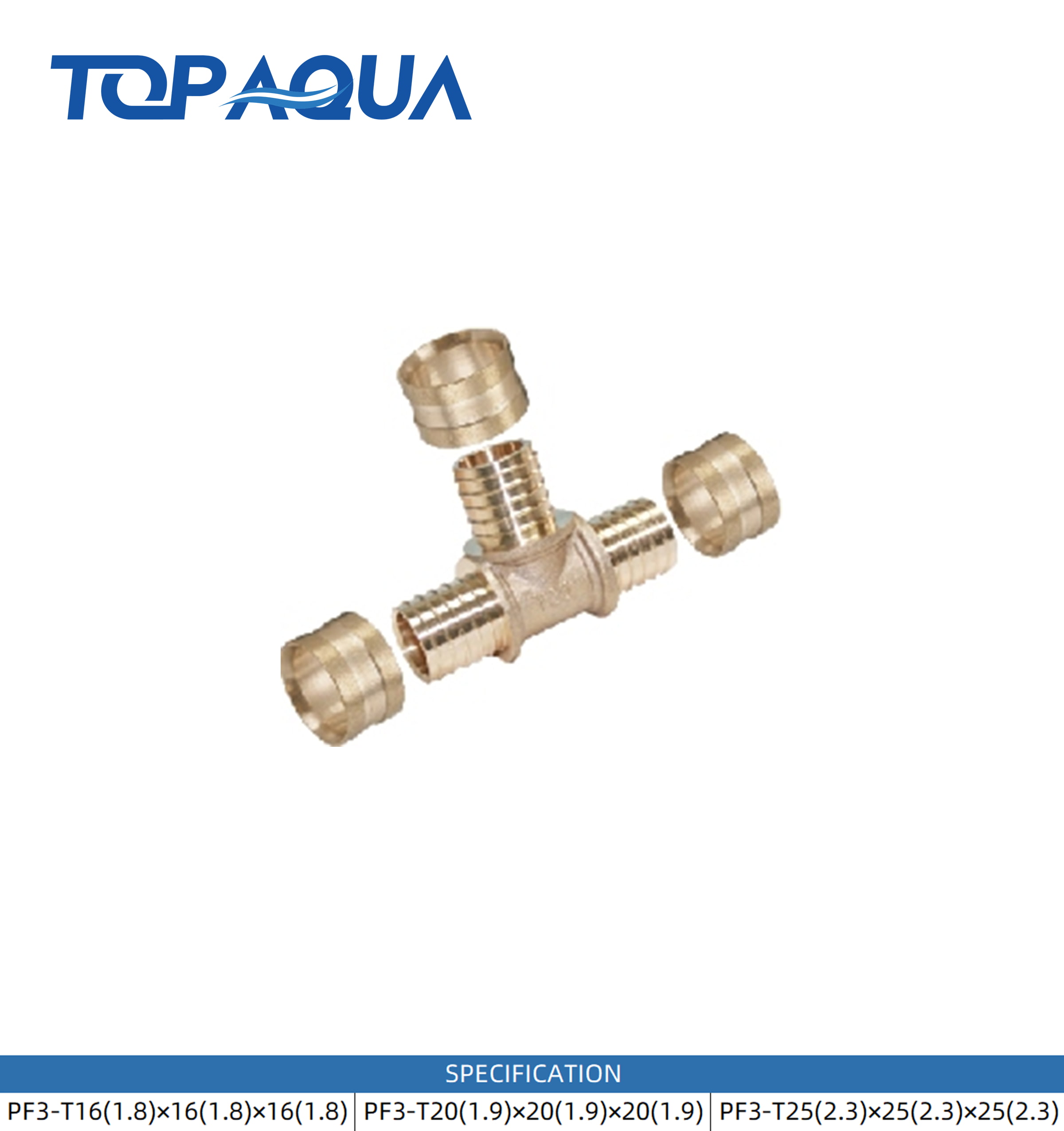

PF3 pull-on fittings equal tee
	PF3-T16(1.8)×16(1.8)×16(1.8)	PF3-T20(1.9)×20(1.9)×20(1.9)	PF3-T25(2.3)×25(2.3)×25(2.3)

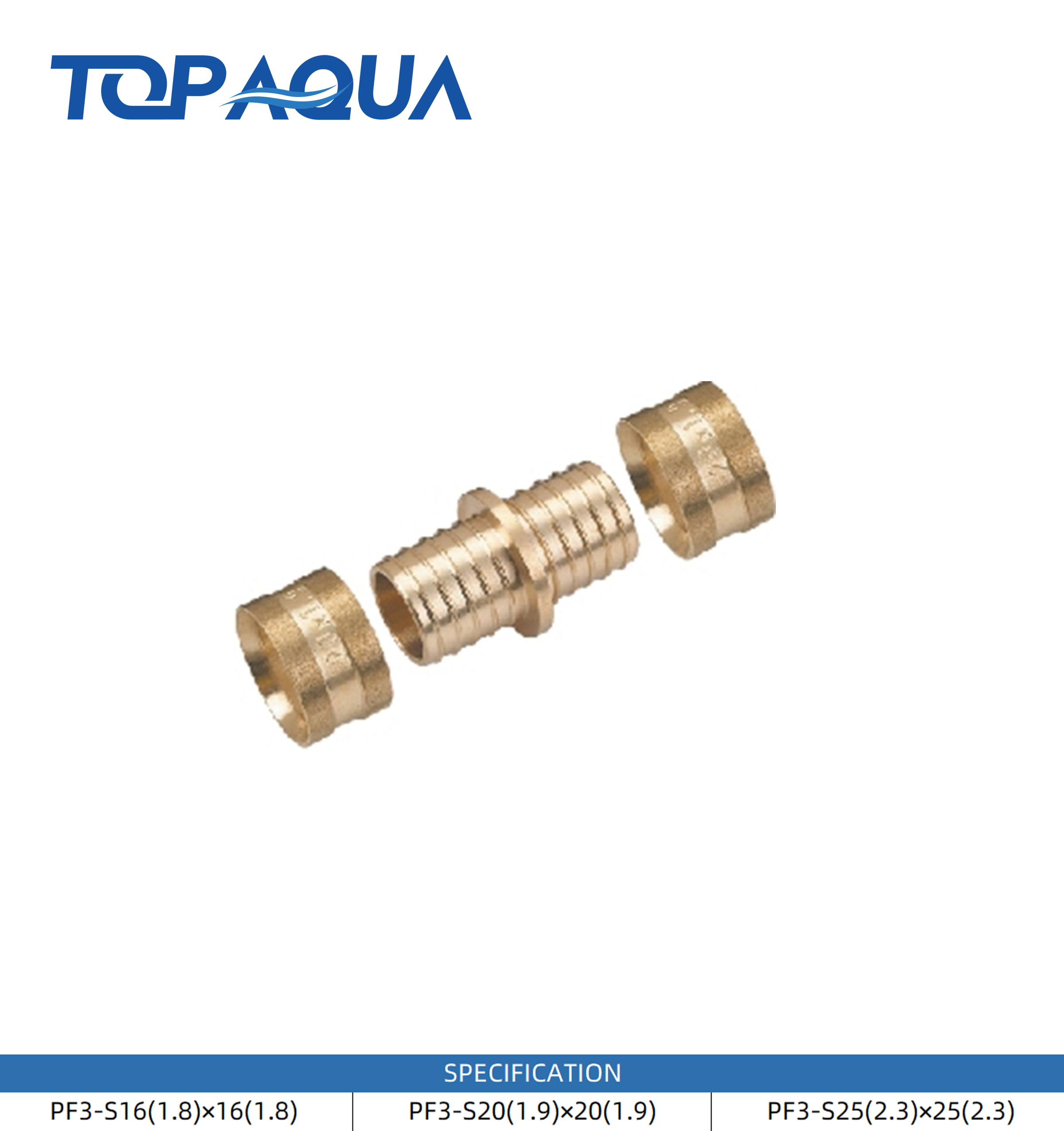

PF3 pull-on fittings unequal union
	PF3-S16(1.8)×16(1.8)	PF3-S20(1.9)×20(1.9)	PF3-S25(2.3)×25(2.3)

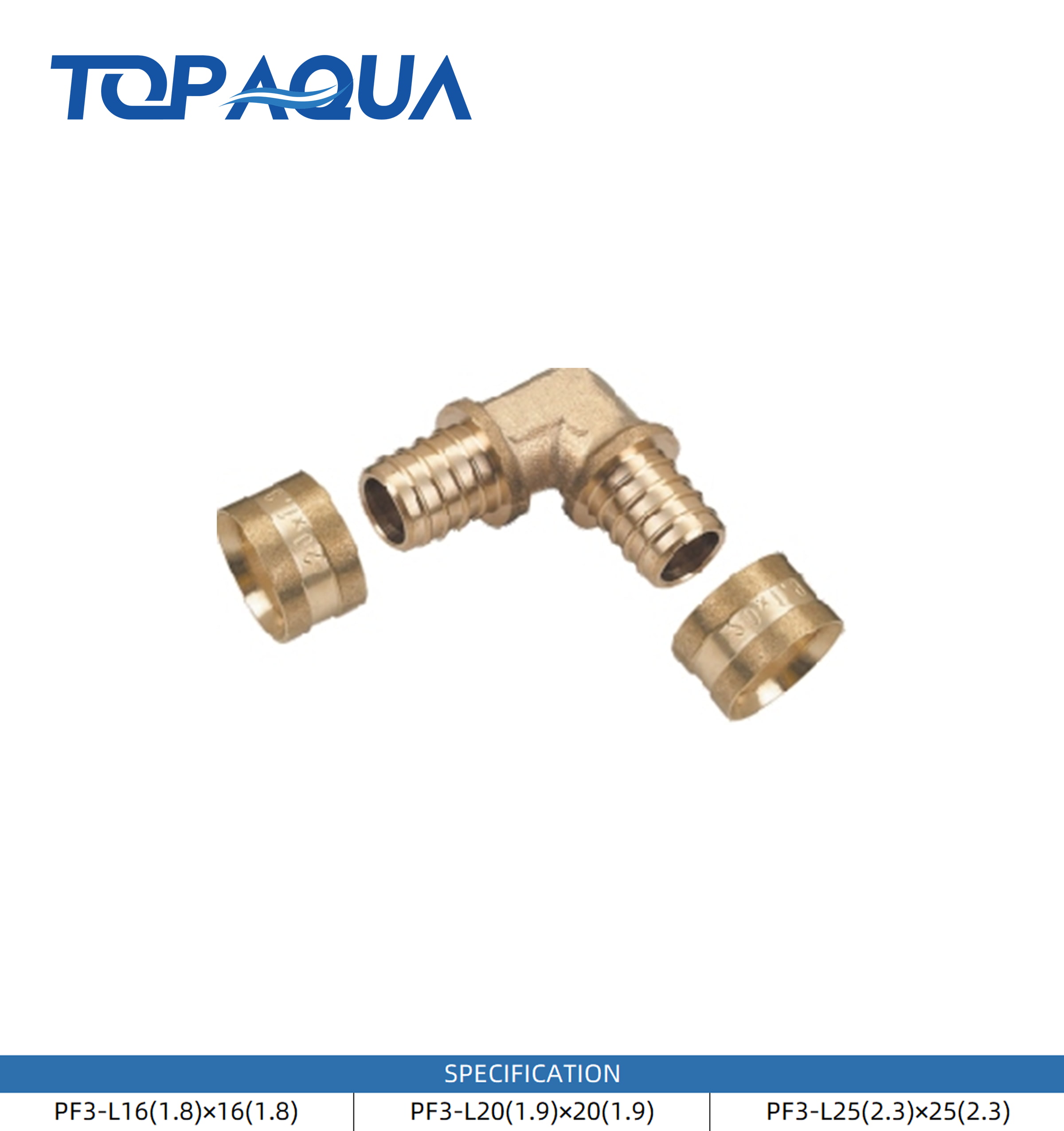

PF3 pull-on fittings equal elbow
	PF3-L16(1.8)×16(1.8)	PF3-L20(1.9)×20(1.9)	PF3-L25(2.3)×25(2.3)
PF3 pull-on fittings end cap
	PF3-D16(1.8)	PF3-D20(1.9)	PF3-D25(2.3)

Product Advantages

TOP AQUA PULL-ON FITTINGS

Achieve reliable, permanent compression sleeve connections quickly
High-strength brass fittings maximize durability: prevents

cracking and resists chemical attack from aggressive solvents/glues.
The full-flow design improves hydraulic performance.
